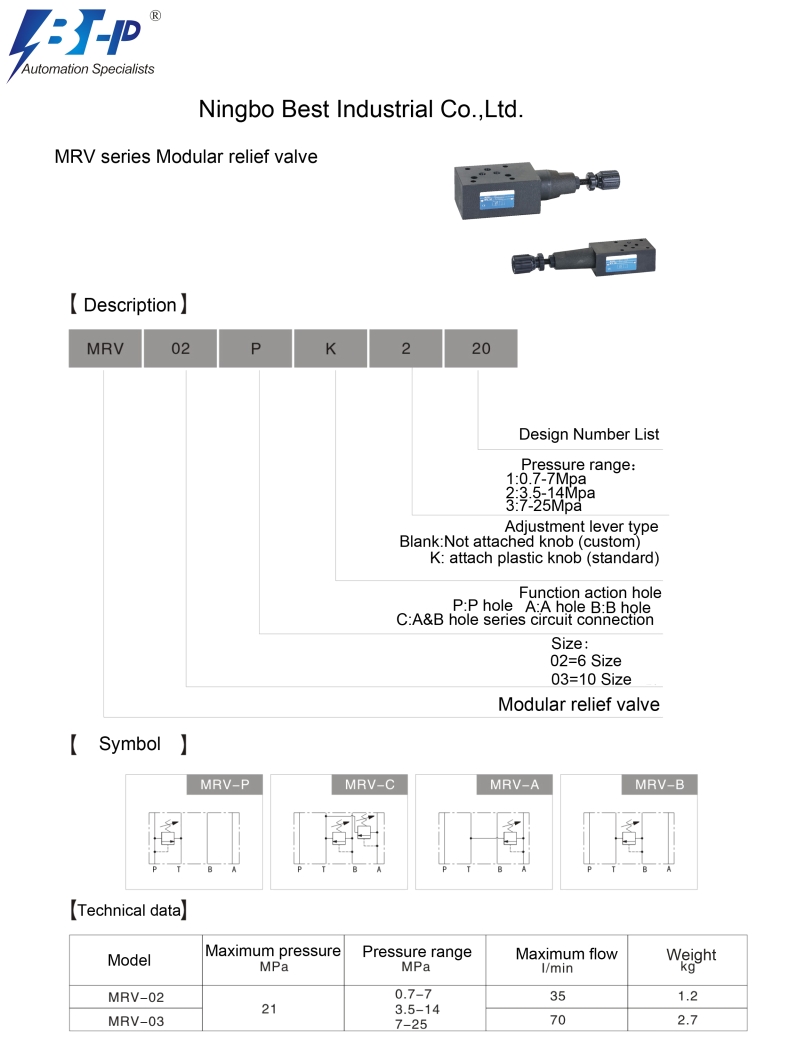

MRV Modular Relief Valve

Adj.Pressure Range of MRV is as following:
1:0.7~7.0MPa
2:3.5~14MPa
3:7.0~25MPa

Function action hole
P:P hole
A:A hole
B:B hole
C:A&B Series connection

Adjusting rod form
Blank: Not attached knob
K: attach plastic knob

Pressure：21MPa
Weight：1.2kgs and 2.7kgs
