DSHG Hydraulic Directional Control Valve

BSTIND DSHG hydraulic directional control valves are engineered as industrial-grade Yuken-compatible directional control solutions for modern hydraulic systems. Designed with the same installation dimensions, hydraulic performance characteristics, and interface standards as the Yuken DSHG series, these valves provide a reliable and cost-effective replacement option for OEM systems and maintenance markets.

As a professional hydraulic valve manufacturer, BSTIND ensures stable production quality and strict dimensional control, making our DSHG series fully suitable for direct integration into existing Yuken directional valve systems without modification.

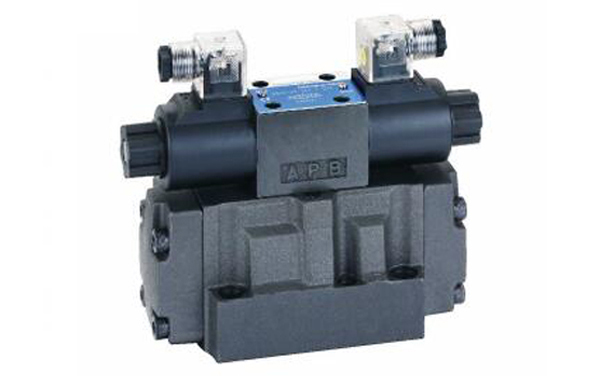

DSHG Hydraulic Directional Control Valve Overview

The DSHG series is a solenoid-operated hydraulic directional control valve used to control the start, stop, and direction of hydraulic oil flow in industrial systems.

BSTIND manufactures DSHG valves in strict accordance with standard industrial specifications, ensuring full compatibility with Yuken directional valve DSHG systems in both performance and installation dimensions.

These valves are suitable for high-frequency switching operations and long-term industrial duty cycles.

Compatibility & Full Model Coverage

BSTIND DSHG directional control valves are engineered as direct-fit replacements for widely used Yuken hydraulic valve systems, ensuring full mechanical and hydraulic interchangeability in industrial applications. The DSHG series is fully compatible with standard Yuken directional control valve platforms, including both:

  • DSHG-04 series (compact hydraulic systems)
  • DSHG-06 series (medium to high flow systems)

These valves are designed to maintain identical mounting interfaces, port layouts, and installation dimensions, allowing direct replacement in existing hydraulic circuits without modification.

The DSHG-04 platform is commonly used in systems where installation space is limited but precise hydraulic control is required.

Typical configurations include:

  • DSHG 04 3C4 D24 N1 50
  • DSHG 04 3C2 D24 N1 50

👉 Application characteristics:

  • Compact hydraulic manifolds
  • Light-to-medium duty systems
  • Precision control circuits

The DSHG-06 series is designed for applications requiring higher flow capacity and stable directional switching under load.

Typical configurations include:

  • DSHG 06 3C4 D24 N1 51
  • DSHG 06 3C60 A240 N1 51

Application characteristics:

  • Medium-to-high flow hydraulic circuits
  • Industrial machinery systems
  • Continuous duty hydraulic operations

DSHG Hydraulic Valve Technical Specifications

Bstind DSHG of DSHG 03,DSHG 04,DSHG 06,DSHG 10 Hydraulic Directional Control Valve

  • 1. Totally interchangeable with original
  • 2. For different kinds of hydraulic systems
  • 3. Nominal size of solenoid Pilot Operated Directional Valves:DSHG 04, DSHG 06, DSHG 10
  • 4. Max. operating pressure of Electric Pilot Operated Solenoid Valve is 31.5Mpa(315bar), max. Flow is 1100L/min
  • 5. Composed of solenoid operated pilot valve and pilot operated slave valve
  • 6. With competitive price
  • 7. 1 year of warranty

DSHG valves is Yuken DSHG directional valve.If you are looking for low pressure with lower cost of Electro-hydraulic Directional Valve,DSHG Valves is your best choice.

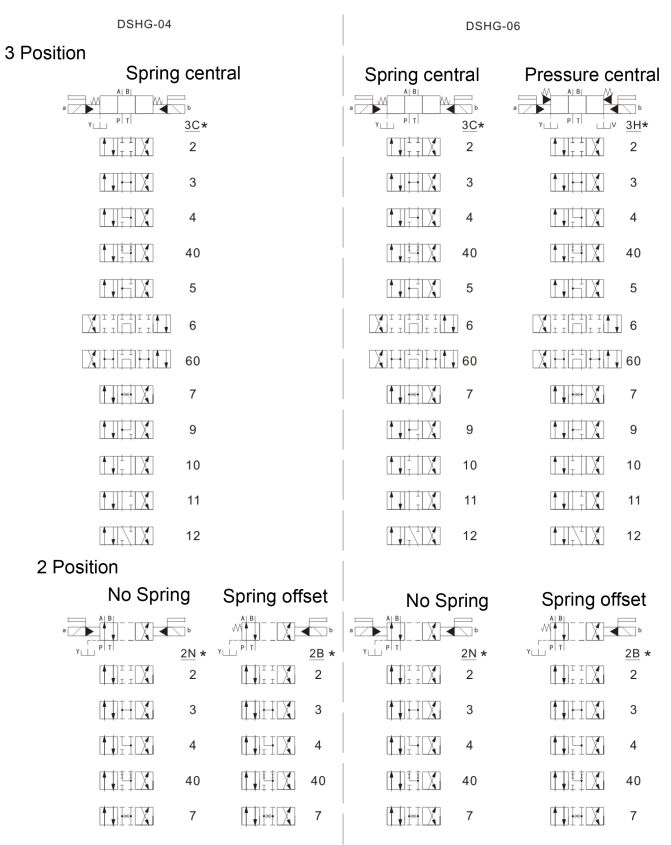

DSHG Directional Spool Valve Symbol

DSHG 04 solenoid controlled pilot operated directional valves pressure drop

DSHG 06 solenoid controlled pilot operated directional valves pressure drop

DSHG 04 Outline and installation dimensions

DSHG 06 Outline and installation dimensions

BSTIND DSHG Hydraulic Valve Key Features

  • Fully compatible with Yuken DSHG hydraulic valve systems
  • Stable performance under continuous industrial operation
  • High-precision spool switching control
  • Standardized mounting for easy replacement
  • Multiple spool and voltage configurations available
  • OEM customization supported

DSHG Hydraulic Valve Applications

BSTIND DSHG directional control valves are designed for industrial hydraulic systems that require reliable directional switching, stable performance, and consistent operation under long-duty cycles. These characteristics make them suitable for a wide range of medium to high-demand hydraulic applications. They are widely used in:

Injection Molding Machines

Hydraulic Power Units

Construction Machinery

DSHG Hydraulic Valve Installation & Maintenance Notes

  • Ensure hydraulic system is fully depressurized before installation
  • Confirm correct spool type and voltage before wiring
  • Use clean hydraulic oil to extend valve service life
  • Replace sealing components during long-term maintenance cycles
  • Verify mounting surface meets ISO/CETOP standards

Why Choose BSTIND Company?

BSTIND is a professional hydraulic valve manufacturer providing global replacement solutions for Yuken hydraulic systems and industrial directional control platforms. We focus on delivering stable, interchangeable, and cost-efficient hydraulic valve solutions for OEM and maintenance markets.

  • Stable industrial manufacturing quality control
  • Full DSHG 04 / 06 series coverage
  • Direct replacement for Yuken systems
  • OEM and customized engineering support
  • Global hydraulic system compatibility solutions

DSHG Hydraulic Valve FAQs

DSHG hydraulic directional control valves are used to control the start, stop, and direction of hydraulic fluid flow in industrial systems. They are commonly installed in hydraulic power units and machinery where precise actuator movement and stable switching performance are required.

DSHG-04 and DSHG-06 refer to different mounting and flow capacity sizes.

DSHG-04 valves are used in compact hydraulic systems with lower flow requirements and limited installation space, while DSHG-06 valves are designed for standard industrial applications that require higher flow capacity and stronger hydraulic performance.

Each size is selected based on system design requirements rather than interchangeable directly with each other.

Yes. BSTIND DSHG valves are designed as compatible replacement solutions for Yuken DSHG series systems.
They maintain the same mounting interface, hydraulic connection layout, and functional structure, allowing direct replacement within the same size category (such as DSHG-04 or DSHG-06 systems).

No. Spool types such as 3C2, 3C4, and 3C60 are selected based on system control requirements and are not interchangeable without considering hydraulic circuit design. Each spool configuration defines a specific flow control function.

These codes refer to solenoid and electrical configurations of the valve.
They define coil voltage type, connector style, and electrical specifications required for different control systems.

Correct selection is necessary to ensure proper electrical compatibility with the hydraulic control system.

DSHG valves are widely used in industrial hydraulic systems such as injection molding machines, hydraulic presses, construction machinery, CNC equipment, and hydraulic power units. These systems require stable directional control under continuous operating conditions.

Request A Quote

If you are currently sourcing or replacing DSHG hydraulic valve , BSTIND can provide a reliable and cost-effective solution tailored to your system requirements.

👉 Contact our engineering team for technical support and quotation.
