DSG-03

3/8 spool solenoid valve are epoch-making solenoid operated directional valves with high pressure, high flow,each part of the valve including the solenoid with unique design . With wet solenoids, these valves have features of low noise and long service life, so as to insure no leakage .
Wide Range of Models
Users can choose the suitable model from this range.
Yuken DSG-03 50 series spool solenoid valves can be classified into two models.
Standard type…..Usable with high pressure:31.5MPa (4570 PSI) and high flow: 120 L/min. (31.7 U.S.GPM)
Shock-less type….Noise in spool is changeover and vibration in piping can be reduced to minimum.

With strong magnet and spring force,the spool yuken directional valve DSG-03 are antipollution so as to ensure stable operation.

Solenoid Connectors (DIN standard)
Solenoid connectors are conformed to the international standard ISO 4400 (Fluid power systems and components-Three-pin electrical plug connectors-Characteristics and requirements).

50 to 60 Hz solenoids do not require rewiring when the applied frequency is changed.

DC solenoids can be used as K-series functions. Advantages are as following:
1.Since high voltage can be controlled with low figure by electric control devices, such as a computer,and can be used without any interference of noise.
2.There are no spark between contacts, life service of relay is longer.
3.Time lag of spool return after de-energisation of the solenoid is very short.

With rectifier and surge absorber, direct current solenoids can be used to directly connecting to AC power source.Like other DC solenoids,with advantages of low noise and coils are hardly burnt out even if the spool is stuck at the half way of its changeover.Moreover,they can be used almost permanently without being affected by a surge voltage from outside.Thus,with characteristics of high reliability and durability.

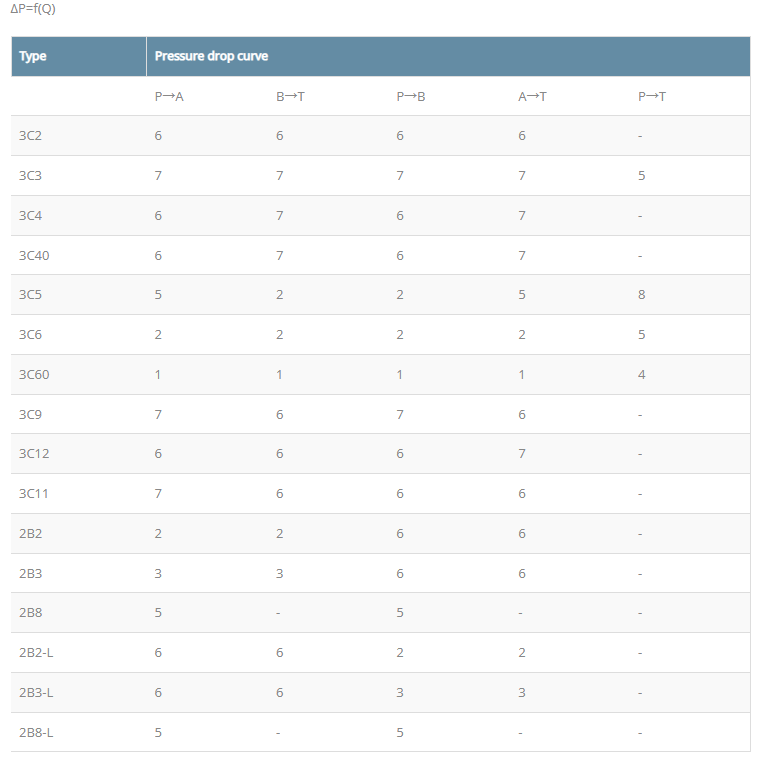

Test condition:
Pressure: 7Mpa
Flow: 120 L/min

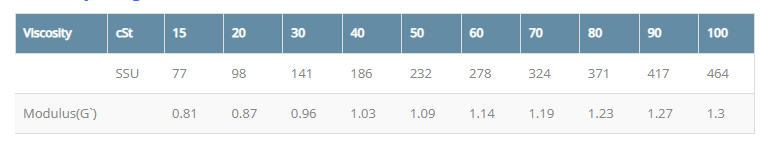

Viscosity: 35 cst
