4WE3 / NG3 Valve Solenoid Operated Directional valve Specifications:
Take use of sub-plate mounting.Design and manufacture according to ISO 4401.With min solenoid valve and good performance.
Take use of thread valve connection and with optionally change coil.
With characteristics of unique waterproof and dust-proof.
Design and manufacture according to DIN43650,ISO 4400,and EN175301-803 standard plug.
Protection grade is IP65,and we can also customized higher degree,like AMP and Deutsch plug.
NG3 valve with 3 holes
4/2-way impulse valve
4/3-way with centered mid position spring
4/2-way with spring reset.

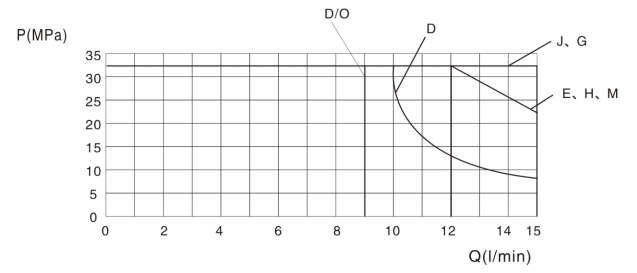

Q max.=15l/min,P max.=315Ba
