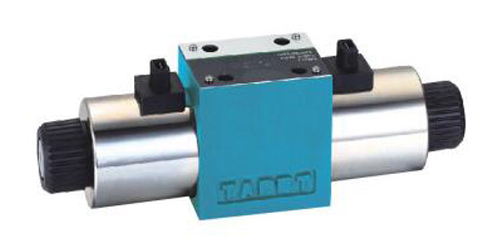

DG4V-5-20

Wet Armature Solenoid Operated Directional Control Valves

Typical used as Spring-Centered DC Valve with Variable Speed Pilot Control passage

Max. pressure 315 bar (4500 psi)
Max. flow rates Up to 120 L/min(32 USgpm),
dependent on spool
Mounting surface ISO 4401 size 05
NFPA D02
DIN 24340 (NG10)

Four-port solenoid operated directional control Vickers DG4V5 valves with four-land spool design,so as to to facilitate of smooth, and response to variable speeds.

The range including:

AC and DC wet-armature solenoid options with ISO 4400 (DIN 43650) electrical connections and manual overrides.
Variable speed changeover potential in all DC models;

More spool types:with spring-offset, spring-centered and detented arrangements.

DG4V5 vickers hydraulic solenoid valve is compatible to fluid :

AC or DC-voltage models is suitable for petroleum oils, water-in-oil (invert) emulsions or phosphate esters. AC-voltage models can be used on water glycols.

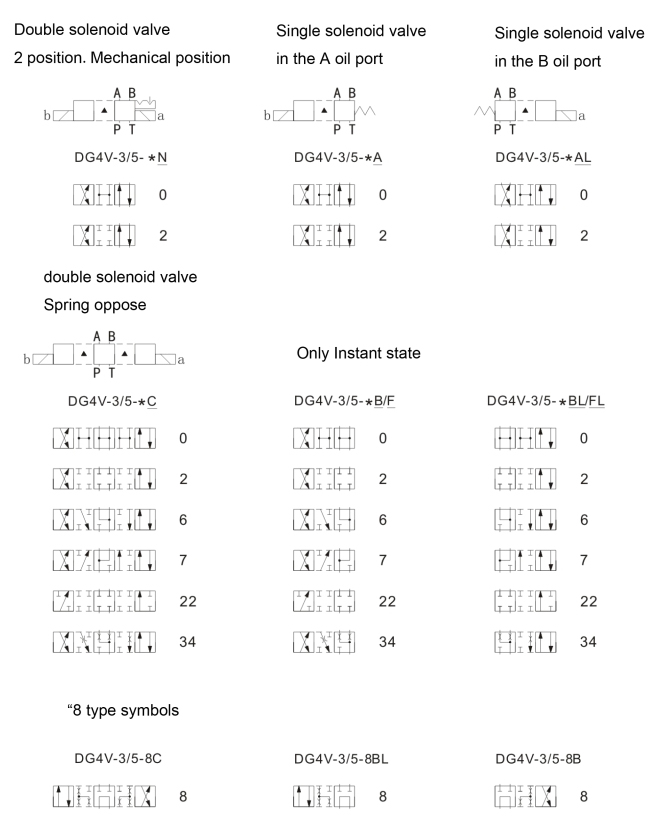

A=Spring-offset, end-to-end
AL=As “A” but left-hand build
B=Spring offset, end-to-center
BL=As “B” but left-hand build
C=Spring centered
N=Two-position, detented

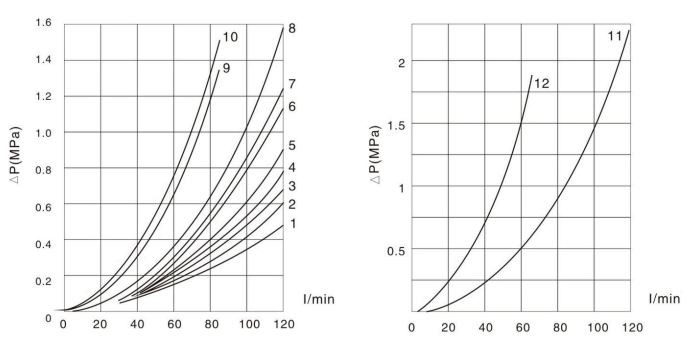

Test condition:
When use mineral oil as working oil liquid.
Viscosity is 21 mm²/s and specific gravity is 0.865.
