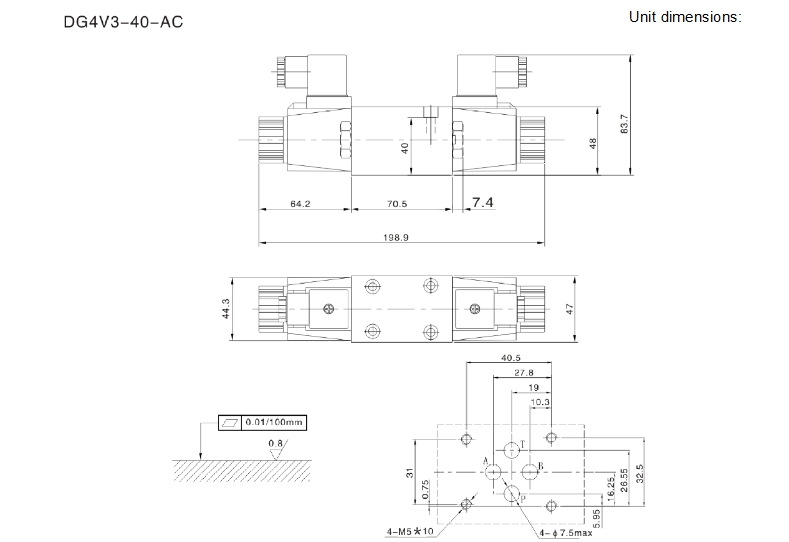

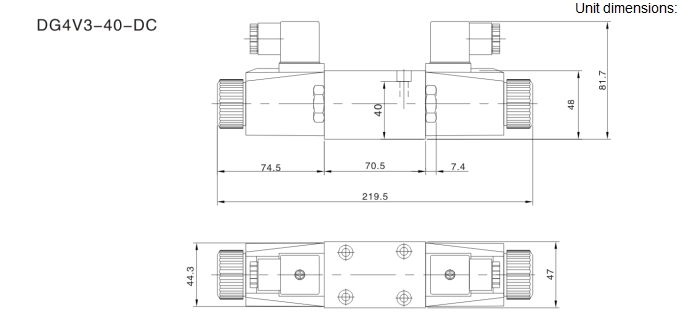

DG4V-3-40

This solenoid operated directional control vickers hydraulic valves can be used to directing and stopping flow at any point in a hydraulic system. Its main function is to determine the direction of fluid flow in cylinder or control the direction of rotation of fluid motor.

Vickers hydraulic valve  port are connected on the mounting of sub-plate or manifold. The valve are wet armature type .And it’s derived from standard DG4V3-60 series .

Design of EN490 is special.Electrical connection of vickers hydraulic valves are directly to the solenoid through various plug-in devices.

Features and advantages
Tank line design is special with high rating and can withstand pressures up to 210 bar (3000 psi).DG4V is ideal replacement as high tank line pressure applications.

Due to new coil design,with characteristics of high thermal shock and impact resistance. Frame around coil ensures high strength and allows frame to expand/contract without adding stress.

Suppressor/diodes available with molded-in surge can protect PLCs or circuit boards from back electro-magnetic force (EMF).

High performance features including minimal pressure drop, scratch-proof override sealing, high reliability, multiple electrical connections can ease servicing.

Maximum Operating Pressure
“A”，“B” and “P” ports: 350 Bar(5000 psi)
Maximum Tank Line Pressure 210 bar (3000 psi)
