4WE4-61 Series Solenoid Operated Directional Valve Specifications

  • Take use of sub-plate mounting.Design and manufacture is according to ISO4401 standard.With min solenoid valve and good function.
  • Valve take use of thread connection.And with optionally change coil.

  • With characteristics of unique waterproof and dust proof.

  • Plug is design and manufacture according to DIN43650,EN175301-803 standard.
  • Protection grade is IP65,and we can custom-made high degree,like AMP Deutsch plug.
  • Mini solenoid valves with excellent performance
  • 4/2-way impulse valve
  • 4/3-way with spring cantered mid position
  • 4/2-way with spring reset
  • Q max = 20 l/min, P max = 350 bar

  • PDF

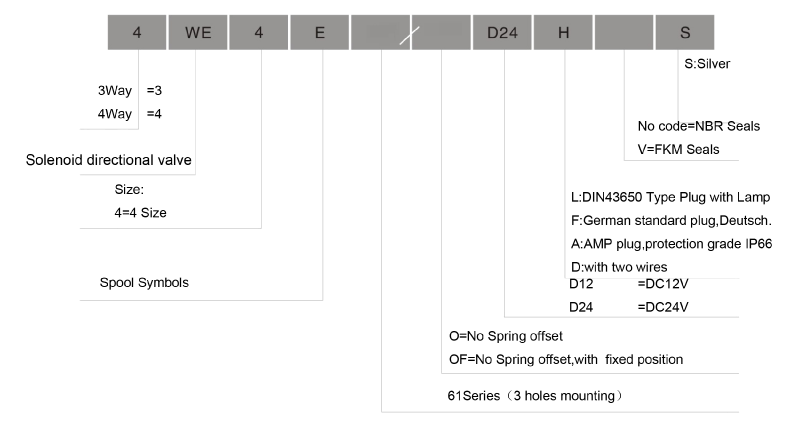

4WE4-61 Symbol

Characteristics

Test condition:Performance limits,with standard voltage -10% oil viscosity = 46 mm²/s(40C`)

Choice of Plug-in Connectors

Plug-in connectors to DIN EN 175301-803 and ISO 4400 for component plug.

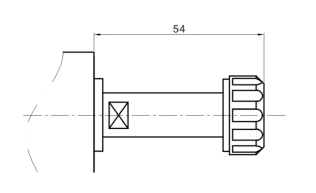

The coil with AMP type plug, protection degree IP67.

With DEUTSCH DT 04-2P coil, shell protection degree IP-69K

With radiation coil (350 length, also choose custom)

4WE4-61 Outline and installation dimensions
