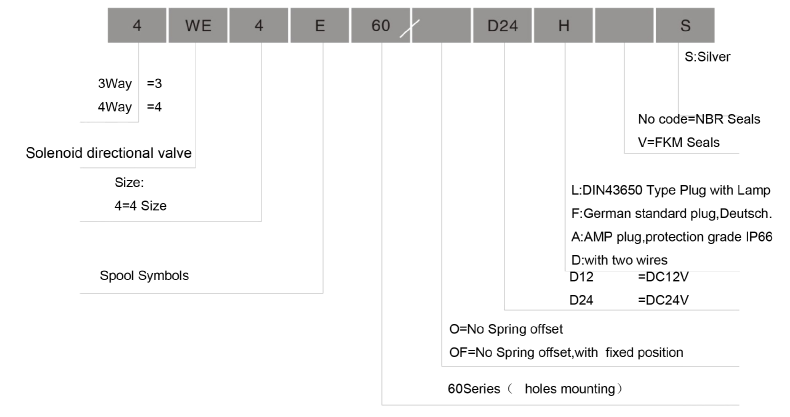

4WE4 Series Solenoid Operated Directional Valve Specifications:

  • Take use of plate mounting.Design and manufacture according to ISO4401 standard.with good functions.
  • Thread-connection valve which can change coil is optionally.
  • With characteristics of waterproof and dust proof.
  • Plug is design and manufacture according to DIN43650 and ISO440,EN175301-803 standards.
  • Protection grade is IP65.And we can also Custom-made more degree,like AMP type Deutsch plug.
  • NG4 / 4we4-60 Solenoid Valve with four holes
  • NG4 solenoid operated spool valve
  • 4/2-way impulse valve
  • 4/3-way with spring cantered mid position
  • 4/2-way with spring reset
  • Q max = 30 l/min, P max = 350 bar

  • PDF

4WE4-60,4WE4 Symbol

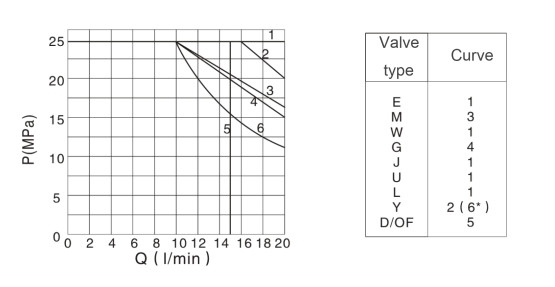

Characteristics

(6*)=Y use for 2 way or 3 way, is number 4 curve.
Test condition:Performance limits,with standard voltage -10% oil viscosity = 46mm²/s(40C`)

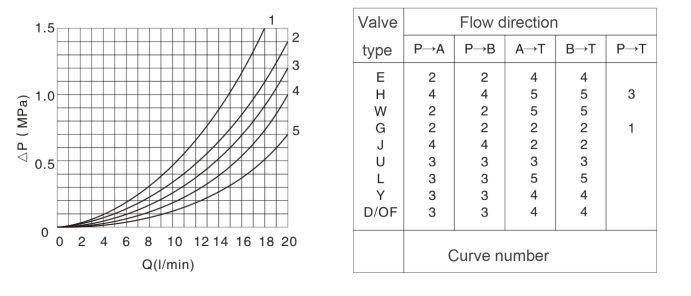

Pressure-drop Curve

Test condition:
Oil viscosity = 46mm²/s (40C`)

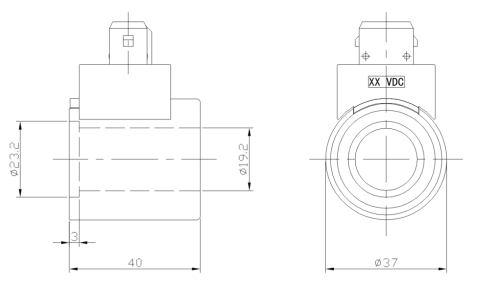

Choice of Plug-in Connectors

Plug-in connectors to DIN EN 175301-803 and ISO 4400 for component plug.

The coil with AMP type plug, protection degree IP67.

With DEUTSCH DT 04-2P coil, shell protection degree IP-69K

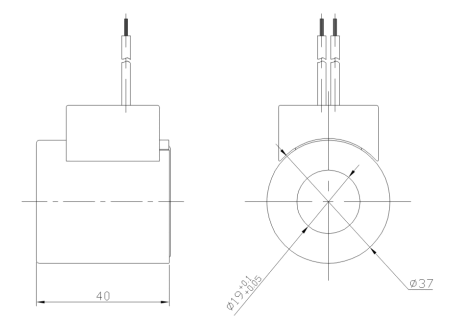

With radiation coil (350 length, also choose custom)

4WE4-60 Outline and Installation Dimensions
