4WE10

4we10 rexroth hydraulic Valves

Standard flow of 4WE10 bosch rexroth hydraulic Valves is 120l/m,and working pressure of hydraulic direction valve is 32Mpa,the same as NG5 valve and Cetop5 valve.4we10 rexroth type directional valve usually used on hydraulic power,hydraulic work system and industrial hydraulic equipment.
4/3, 4/2 directional valve with wet-pin DC or AC voltage solenoids
Size 4WE10 has Hydraulic Solenoid Valve
Component series has 3X (30~39),4X (40~49)
The maximum operating pressure is 315 bar
The maximum flow is 120 l/min
PDF

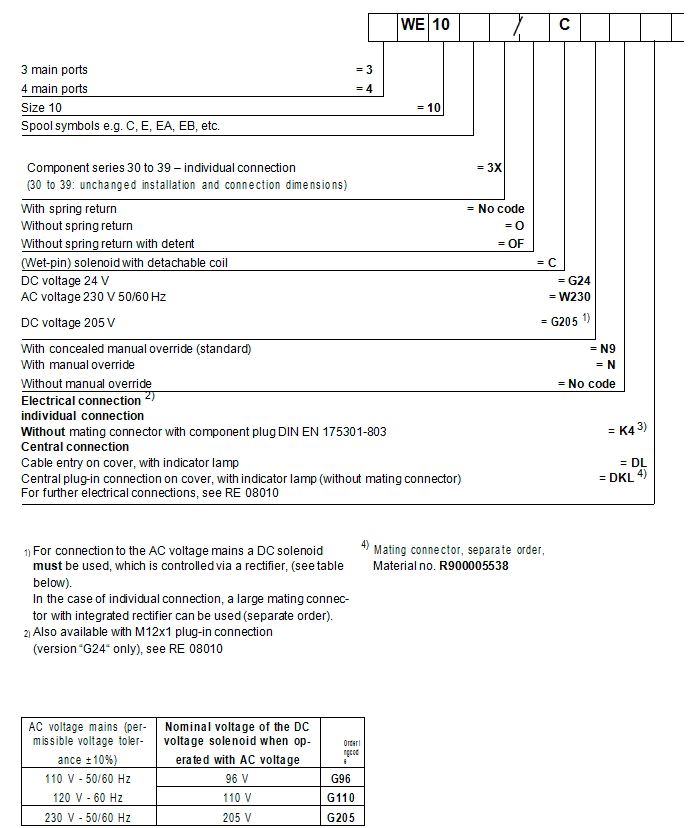

Ordering code

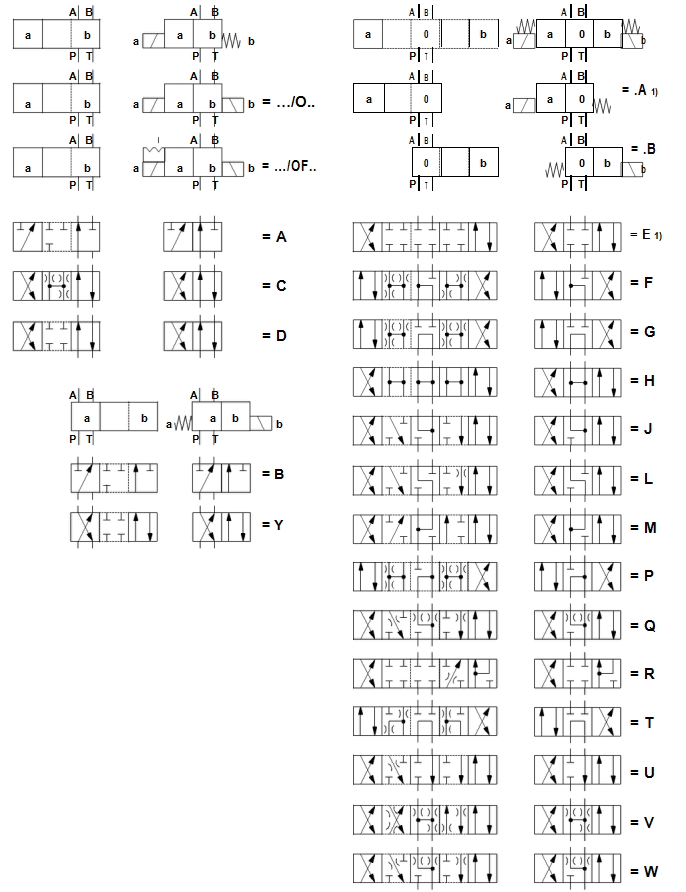

Spool Symbols

1)Example:Spool symbol E with spool position “a”, ordering code ..EA..

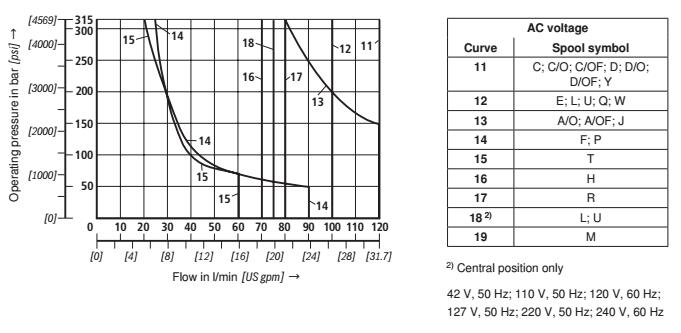

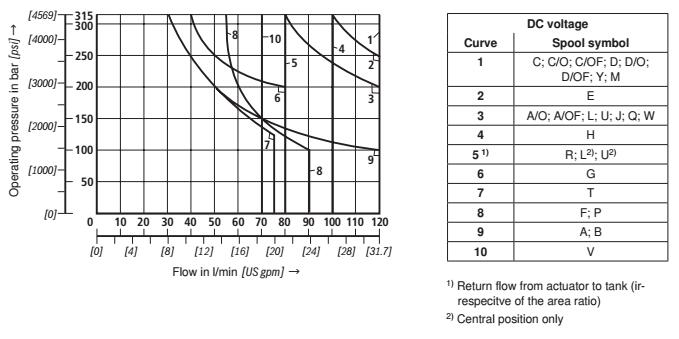

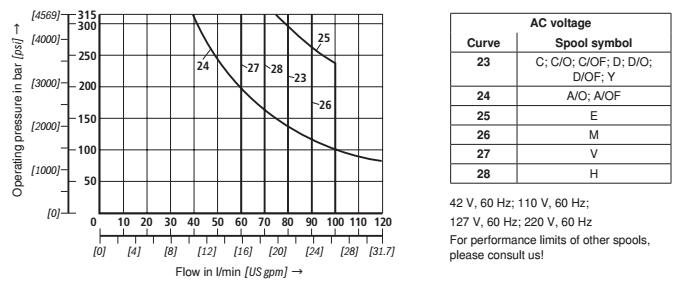

Performance limits(measured with HLP46 θoil = 40℃±5℃ [104℉±9℉])

Attention!
The specified switching performance limits are valid for operation with two directions of flow(e.g. from P to A and simultaneous return flow from B to T).
Due to the flow forces acting within the 4WE10 bosch rexroth valves,the permissible switching performance limits may be considerably lower with only one direction of flow(e.g. from P to A while port B is blocked)!
In such cases, please contact us!
The switching performance limit was establised while the solenoids were at operating temperature, at 10% undervoltage and without tank pre-loading.
