Cartridge Hand Pump HP-10

Cartridge Hand Pump is indispensable in some hydraulic integrated circuit. Cartridge Hydraulic Hand Pump could be mounted inline using standard housing or special blocks. Handle is offered as option in case of frequent operation.

Cartridge Hand Pump HP-10

When the operator is pushed, the valve delivers a nominal flow of 10.0cc to the port. When the operator is pulled, the valve suctions fluid from the port.

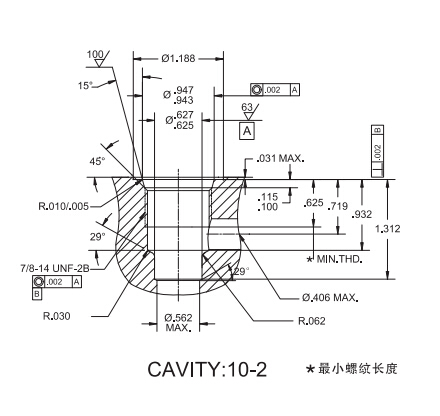

Cartridge Hand Pumps HP-10 Cavity

Cartridge Style Hand Pump HP-10 Symbol

Cartridge Style Hand Pump HP-10 SPECIFICATIONS

  • Operating Pressure ：207Bar
  • Flow : 10.0 cc per stroke.
  • Internal Leakage :2 drops/min. max. at 138Bar
  • Temperature:-22°F to +250°F (-30°C to +120°C)
  • Recommended Filtration ：ISO 16/12
  • Fluids：Mineral-based fluids. For other fluid compatibility, consult factory.
  • Body Material ：Anodized 6061T6 aluminum

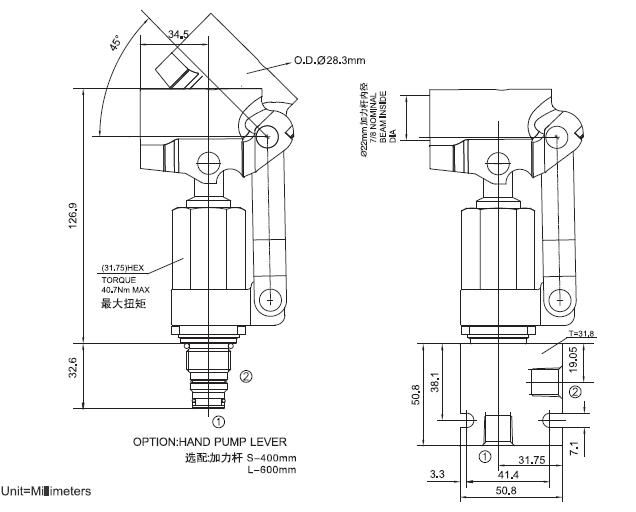

Cartridge Hydraulic Hand Pump HP-10 INSTALLATION DIMENSIONS
