In today’s world, Cartridge Flow Control Valves are widely used across numerous industries, including construction machinery, agricultural equipment, industrial automation, material handling, and mobile hydraulics. Their versatility allows precise flow regulation, improved system efficiency, and reliable operation in a variety of applications.

Bestop offers a wide range of Cartridge Flow Control Valves, providing reliable solutions for both industrial and mobile hydraulic systems. As a professional hydraulic valve manufacturer, we produce and supply valves that match the performance of major international brands, including Bosch Rexroth, Vickers, Yuken, and Sun Hydraulics. Our valves deliver equivalent quality at a more competitive price, making them an ideal choice for cost-conscious buyers. Bestop also supports individual buyers and small-batch orders, offering flexible solutions for personal projects, small-scale hydraulic systems, and specialized industrial applications.

✔ Directly interchangeable with Sun Hydraulics, HydraForce, Bosch Rexroth, and Yuken brands.
✔ Lower cost compared to OEM brands
✔ Small batch orders supported
✔ Fast delivery & stable supply
✔ 100% pressure tested before shipment
✔ High-strength materials for long service life
✔ Multiple cavity options available, Custom specifications supported

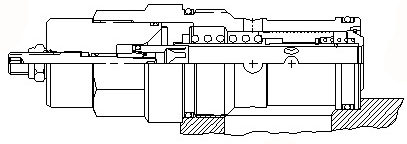

What are Cartridge Flow Control Valves?

Cartridge Flow Control Valves are compact hydraulic components designed to regulate the flow rate of fluid within a system. Installed directly into a manifold, they control the speed of actuators such as cylinders and motors by adjusting the volume of oil passing through. These valves can be fixed, adjustable, or pressure-compensated to maintain consistent flow under varying loads.

Characteristic Description

  • Pressure Losing Very LOW
  • Operating pressures to 350bar(5000pas)
  • Hardened precision parts for long life
  • Part ion product accord with industry common cavity

Load Control Valves Function Choice

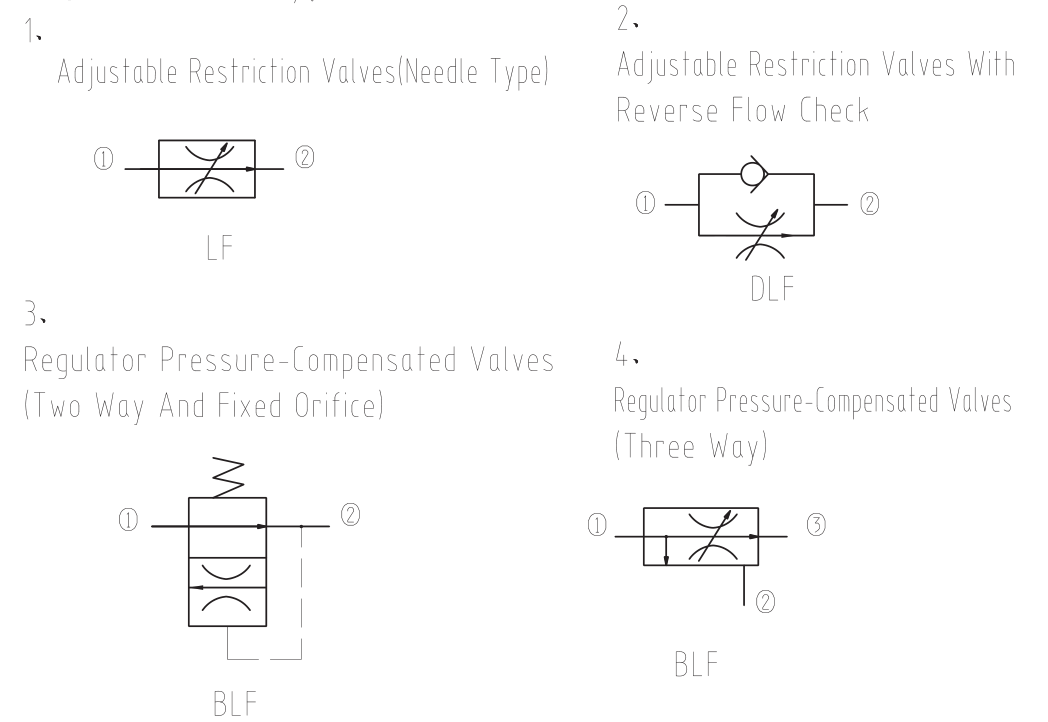

Flow Control Valves Function Choice

Model Choice Spring Ranges Pilot Ratios Max.Flow
BBLF06-00-00 (593 downloads) 210bar 1.4~18L/min 18L/min
BBLF06-02-00 (562 downloads)   2~4L/min 12L/min
BBLF08-00 (556 downloads) 345bar 0.05~40L/min 20L/min
Model Choice Spring Ranges Pilot Ratios Max.Flow
BBLF10-00 (582 downloads) 345bar 0.05~40L/min 60L/min
Model Choice Spring Ranges Pilot Ratios Max.Flow
BLF04-00 (543 downloads) 240bar 0.3~20L/min 20L/min
BLF08-00 (554 downloads)   0.3~35L/min 35L/min
BLF10-00 (575 downloads)   0.3~60Lmin 60L/min
BLF12-02 (568 downloads)   0.3~113L/min 113L/min
Model Choice Spring Ranges Pilot Ratios Max.Flow
BDLF08-00 (519 downloads)   0.3~30L/min 30L/min
BDLF10-00 (543 downloads)   0.3~45L/min 45L/min
BDLF12-00 (541 downloads)   0.3~200L/min 200L/min
BDLF12-01 (561 downloads)   0.3~120L/min 120L/min
BDLF16-00 (527 downloads)   0.3~350L/min 350L/min
Model Choice Spring Ranges Pilot Ratios Max.Flow
BFBF12-01/03 (570 downloads) 210bar   25L/min
BFBF××/X.× (552 downloads) 350bar 25~180L/min

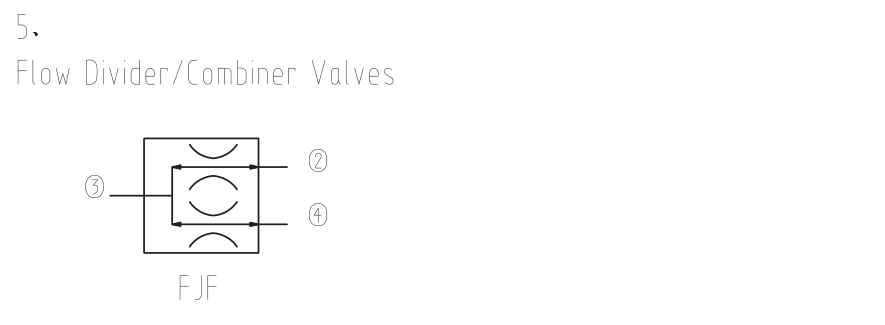

Model Choice Spring Ranges Pilot Ratios Max.Flow
BFJF10-01 (559 downloads)     40L/min

Cartridge Flow Control Valve Types

Adjustable flow control valves allow operators to manually regulate flow rates based on system requirements. They are widely used in applications where speed control is critical, such as hydraulic cylinders and motors.

Key benefits:

  • Precise flow adjustment
  • Flexible operation
  • Easy installation and maintenance

These flow control valves automatically maintain a constant flow rate regardless of pressure changes in the system. They are ideal for applications requiring consistent speed and high precision.

Key benefits:

  • Stable flow under varying pressure
  • Improved system accuracy
  • Reduced performance fluctuations

Non-compensated valves provide a simple and cost-effective solution for basic flow control needs. They are best suited for systems where pressure variations are minimal.

Key benefits:

  • Simple design
  • Lower cost
  • Reliable for basic applications

These flow control valves combine flow regulation with a built-in check valve, allowing free flow in one direction and controlled flow in the opposite direction.

Key benefits:

  • One-way flow control
  • Improved system efficiency
  • Ideal for load control applications

Cartridge Flow Control Valves Applications

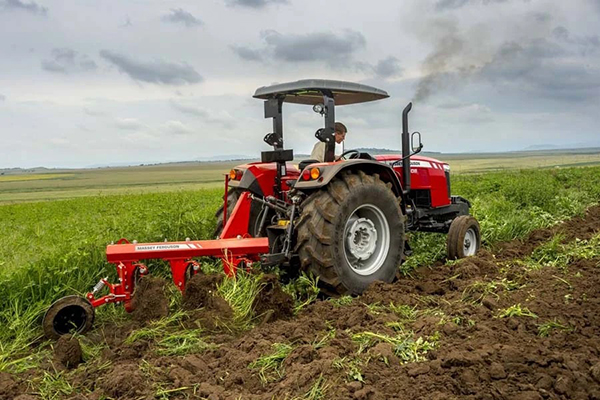

Tractor

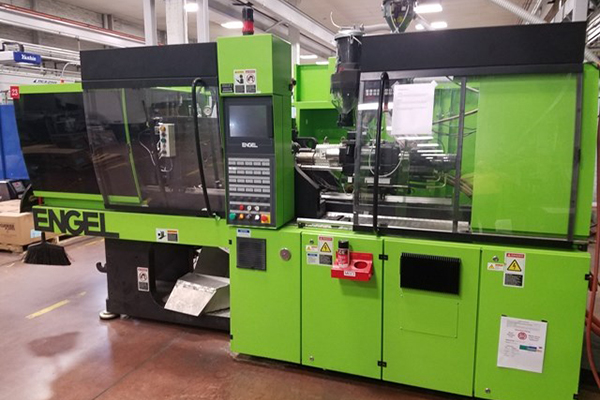

Injection Molding Machine

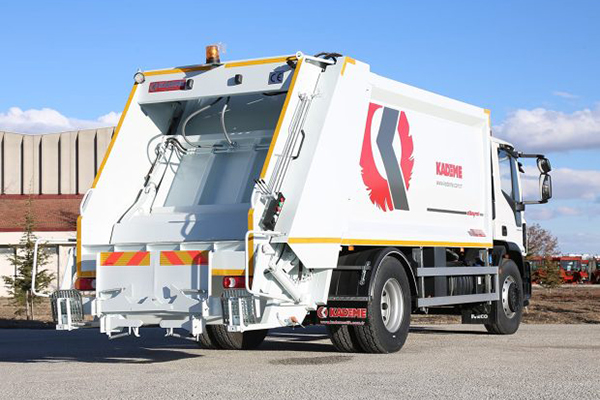

Garbage Truck Compactor

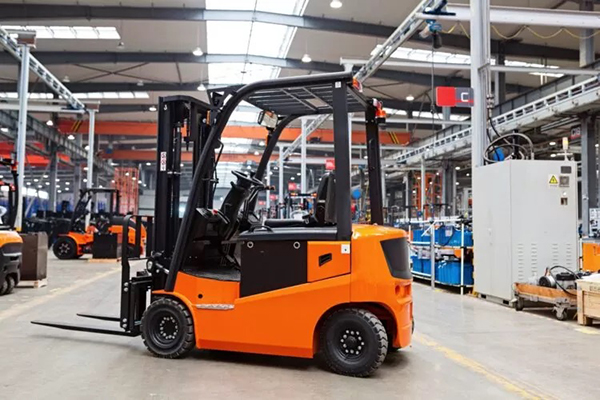

Forklift

Excavator

Dump Truck

Why Choose Our Cartridge Flow Control Valves?

  • High precision flow control for improved system performance
  • Durable construction for long service life
  • Fast response and stable operation
  • Fully compatible with major international brands
  • OEM and custom solutions available
  • Cost-effective alternative without compromising quality

How to Choose Cartridge Flow Control Valves?

Selecting the correct cartridge flow control valve is essential to ensure optimal performance, efficiency, and reliability in your hydraulic system. Follow these key factors to make the right choice:

Flow Range

Determine the required flow rate for your application. Choose a valve that can handle the minimum and maximum flow needed without causing excessive pressure drop or instability.

Pressure Rating

Match the valve’s maximum operating pressure to your system’s working pressure. Using a valve rated below system pressure can lead to leaks, damage, or unsafe operation.

Compensation Type

Pressure Compensated: Maintains a constant flow even when system pressure fluctuates. Ideal for precision speed control.Non-Compensated: Suitable for simple systems where pressure variations are minimal.

Cavity and Size Compatibility

Ensure the valve fits your existing manifold or mounting cavity. Check thread type, dimensions, and installation space to avoid compatibility issues.

Application Requirements

Consider the function of the valve in your system:

  • Speed control of actuators
  • Load-holding or unloading
  • Directional flow regulation

Fluid and Temperature Compatibility

Confirm that the valve materials and seals are compatible with your hydraulic fluid and operating temperature range to prevent premature wear or failure.

Cartridge Flow Control Valves FAQs

It restricts or adjusts the flow passage, allowing precise control of fluid movement and actuator speed.

Pressure compensated valves maintain constant flow regardless of pressure changes, while non-compensated valves do not.

Yes, our cartridge flow control valves are designed for direct interchangeability with Sun Hydraulics and other major brands.

Unstable flow may be caused by pressure fluctuations, improper valve selection, or internal wear. In many cases, replacing with a pressure compensated valve can solve the issue.

For adjustable valves, use the adjustment screw or knob to increase or decrease flow. Always follow the manufacturer’s instructions, make small adjustments, and test system performance after each change.
