Cartridge Check Valve

A cartridge check valve is a compact, screw-in hydraulic component designed to allow fluid flow in one direction while preventing reverse flow. Installed directly into a manifold or valve body, it provides reliable sealing, fast response, and minimal pressure drop. Cartridge check valves are widely used in hydraulic power units, mobile equipment, and industrial machinery to maintain system pressure, protect pumps, and ensure stable circuit operation. Their modular design simplifies installation, reduces leakage points, and enables easy maintenance or replacement.

Characteristic Description

Pressure Losing Very Low.
Operating pressures up to 315bar(4565psi).
Hardened precision parts for long life and low leakage.
Part ion product accord with industry common cavity.
External parts zinc pained or oxidant.
Check valve’ s cracking pressure is optional.
Compact size.

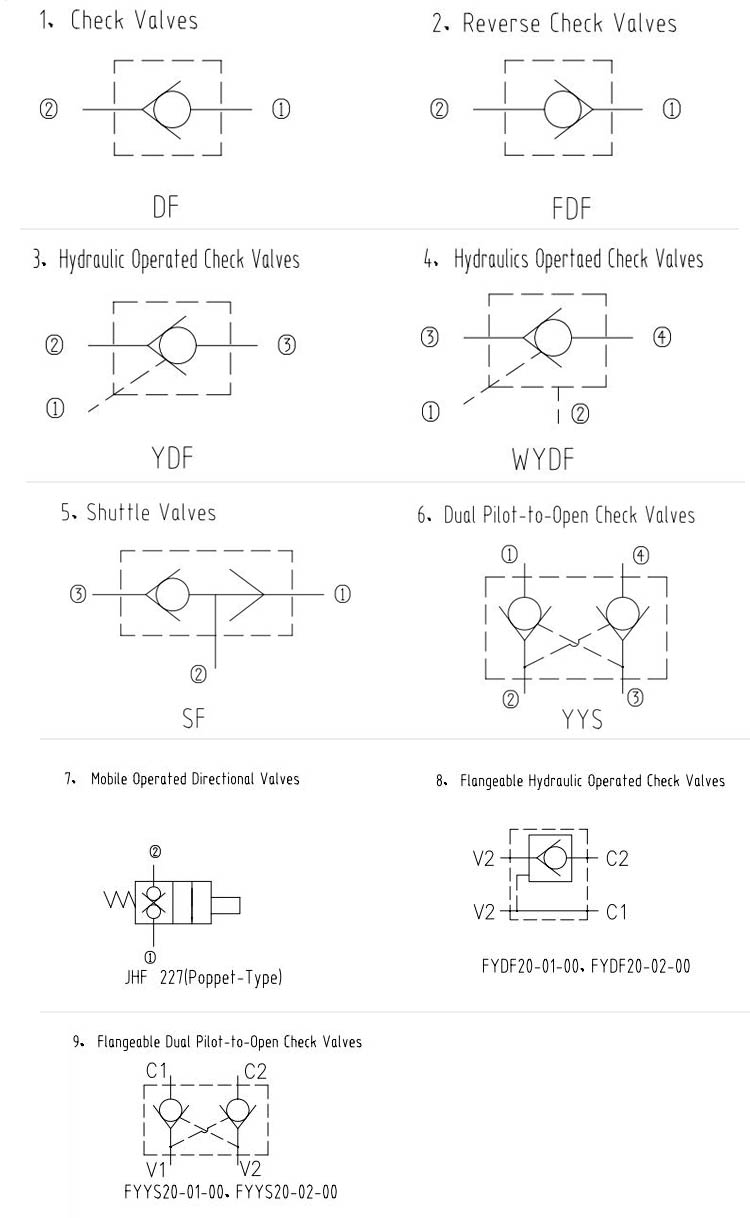

Directional Control Valve Function Choice

Directional Control Valve Function Choice

Model Choice	Spring Ranges	Type of Pin	Max.Flow
BDF04-00 (515 downloads)	315bar	Poppet	18L/min
BDF08-01 (517 downloads)			30L/min
BDF08-02 (506 downloads)		Ball
BDF10-01 (565 downloads)		Poppet	113L/min
BDF10-05 (524 downloads)			75L/min
BDF10-06 (509 downloads)
BDF12-01 (527 downloads)		240bar	113L/min
BDF16-00 (510 downloads)			200L/min
BDF16-02 (508 downloads)			300L/min
BDF20-00 (509 downloads)			350L/min
BDF20-03 (523 downloads)			400L/min

Model Choice	Spring Ranges	Type of Pin	Max.Flow
BFDF08-00 (481 downloads)	240bar	Poppet	30L/min
BFDF10-00 (524 downloads)			75L/min
BFDF10-02 (475 downloads)			113L/min
BFDF32-00 (518 downloads)	350bar		400L/min

Model Choice	Spring Ranges	Type of Pin	Max.Flow
BYDF04-00 (503 downloads)	240bar	Poppet	18L/min
BYDF08-01 (504 downloads)		Ball	30L/min
BYDF10-00 (500 downloads)		Poppet	45L/min
BYDF10-01 (523 downloads)	350bar		75L/min
BYDF10-02 (509 downloads)	240bar		45L/min
BYDF12-00 (481 downloads)	315bar		200L/min
BYDF16-00 (471 downloads)			380L/min
BFYDF20-01 (506 downloads)		207bar/350bar	35L/min
BFYDF20-02 (506 downloads)			60L/min

Model Choice	Spring Ranges	Type of Pin	Max.Flow
BWYDF10-00 (529 downloads)	240bar	Poppet	75L/min
BWYDF12-00 (487 downloads)	315bar		200L/min
BWYDF16-00 (558 downloads)			350L/min

Model Choice	Spring Ranges	Type of Pin	Max.Flow
BSF06-01 (526 downloads)	240bar	Poppet	15L/min
BSF08-00 (489 downloads)			18L/min
BSF10-00 (532 downloads)			30L/min

Model Choice	Spring Ranges	Max.Flow
BYYS08-00 (495 downloads)	240bar	18L/min
BYYS10-00 (456 downloads)		30L/min
BFYYS20-01 (507 downloads)	207bar/350bar	50L/min
BFYYS20-02 (457 downloads)		100L/min

Model Choice	Spring Ranges	Type of Pin	Max.Flow
BYHF08-225 (543 downloads)	210bar	Spool	20L/min
BYHF10-225 (526 downloads)			38L/min
BYHF10-232 (565 downloads)			18L/min
BYHF10-24C (529 downloads)			45L/min

Model Choice	Spring Ranges	Type of Pin	Max.Flow
BYHF10-33HO (529 downloads)	350bar		25L/min

Model Choice	Spring Ranges	Type of Pin	Max.Flow
BYHF10-33LO (538 downloads)			25L/min

Model Choice	Spring Ranges	Type of Pin	Max.Flow
BYHF10-33LC (529 downloads)			25L/min

Model Choice	Spring Ranges	Type of Pin	Max.Flow
BSHF06-227 (468 downloads)	315bar	Poppet	30L/min
BSHF06-227E-02 (483 downloads)

Model Choice	Spring Ranges	Type of Pin	Max.Flow
BJHF06-227 (502 downloads)		Poppet	30L/min
